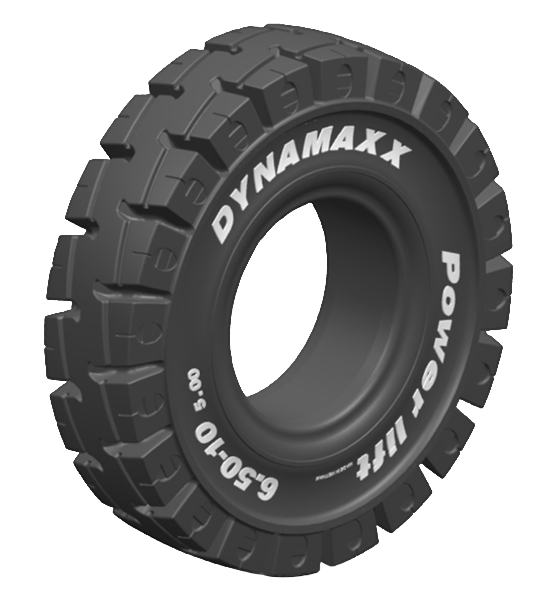

POWER LIFT (3-Stage)
Tire Description:
3-Stage Pneumatic Shaped Solid
- Premium natural rubber compounds
- Cut and tear resistant tread
- Lug and profile designed to increase stability
- Low rolling resistance
- Excellent traction
- Select sizes available as Standard or Swift (Halo/LOC/Clip) bead configuration
Engineered for:
Forklifts
| Size | Rim | Type | O.D. in / mm |
S.W. in / mm |
T.D. in / mm |
L.C.C. lbs / kg |
||
|---|---|---|---|---|---|---|---|---|
| ST | SW | Load Wheels | Steer Wheels | |||||
| 15x4.5-8 | 3.00D | * | * | 15.2 385 |
4.3 110 |
0.7 17 |
2295 1040 |
1765 800 |
| 5.00-8 | 3.00D | * | 18.3 464 |
5.1 130 |
0.9 23 |
3120 1415 |
2405 1090 |
|
| 16x6-8 | 4.33R | * | * | 16.3 415 |
5.9 151 |
0.8 19 |
3210 1455 |
2470 1120 |
| 18X7-8 | 4.33R | * | * | 18.2 463 |
6.4 163 |
0.8 21 |
4730 2145 |
3640 1650 |
| 6.00-9 | 4.00E | * | 20.9 532 |
5.9 150 |
1.0 25 |
4155 1885 |
3200 1450 |
|
| 21X8-9 | 6.00E | * | 20.7 526 |
7.6 192 |
1.1 27 |
6075 2755 |
4675 2120 |
|
| 6.50-10 | 5.00F | * | * | 22.8 579 |
6.4 162 |
1.0 27 |
5160 2340 |
3970 1800 |
| 200/50-10 | 6.50F | * | * | 18.3 465 |
7.9 200 |
0.7 19 |
5445 2470 |
4190 1900 |
| 23x9-10 | 6.50F | * | * | 23.2 589 |
8.1 205 |
1.2 31 |
7595 3445 |
5840 2650 |
| 7.00-12 | 5.00S | * | 26.0 660 |
6.9 176 |
1.1 29 |
6440 2920 |
4940 2240 |
|
| 28x9-15 | 7.00 | * | 27.8 706 |
8.6 218 |
1.2 31 |
8600 3900 |
6615 3000 |
|
| 8.25-15 | 6.50 | * | 32.5 826 |
8.3 210 |
1.5 37 |
10470 4750 |
8050 3650 |
|
| 300-15 | 8.00 | * | 32.3 821 |
10.2 260 |
1.4 36 |
12895 5850 |
9920 4500 |
|
