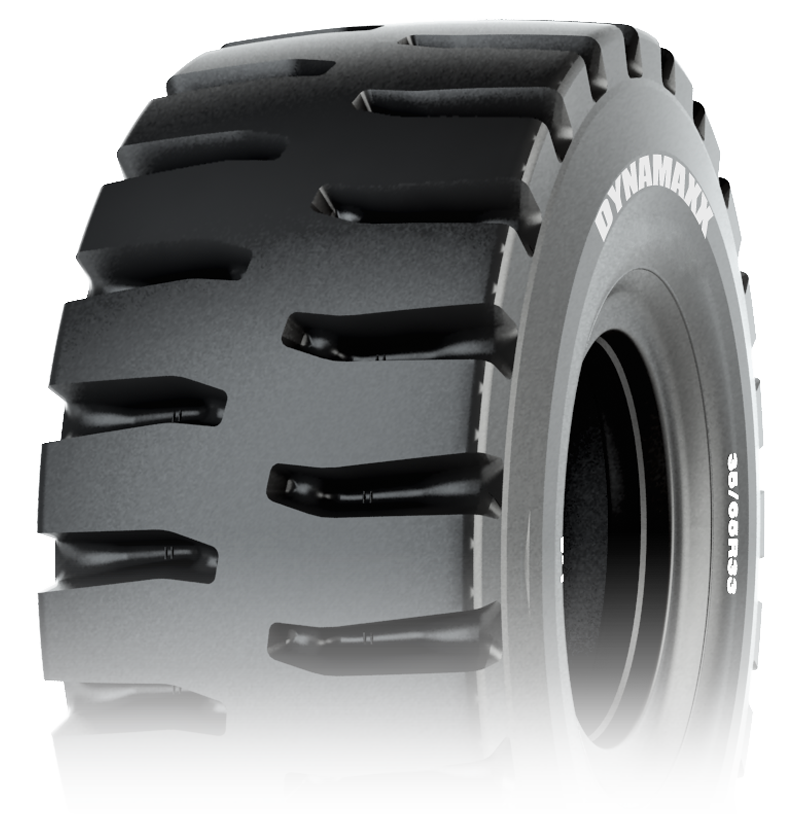

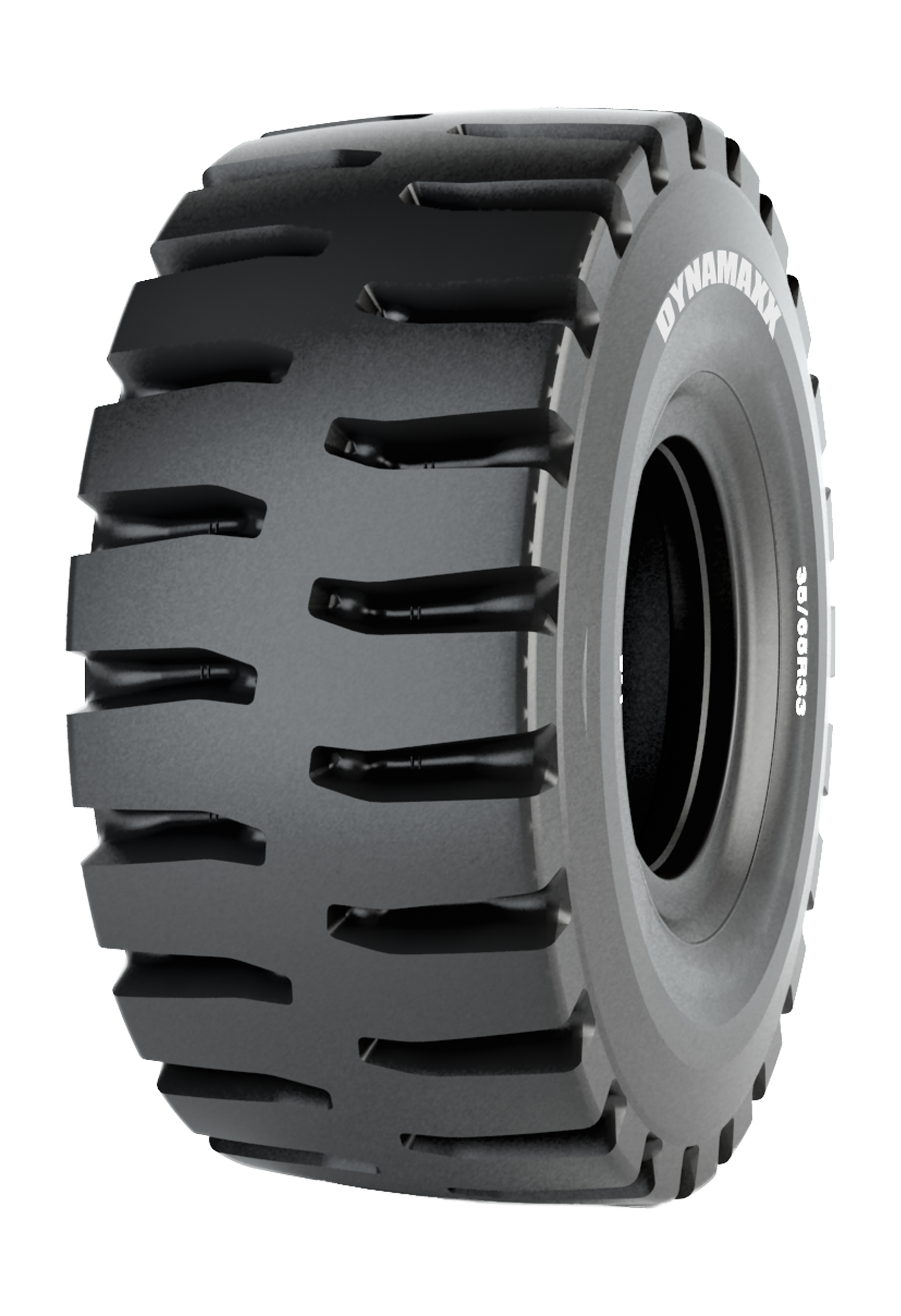

Lug Trac
Tire Description:

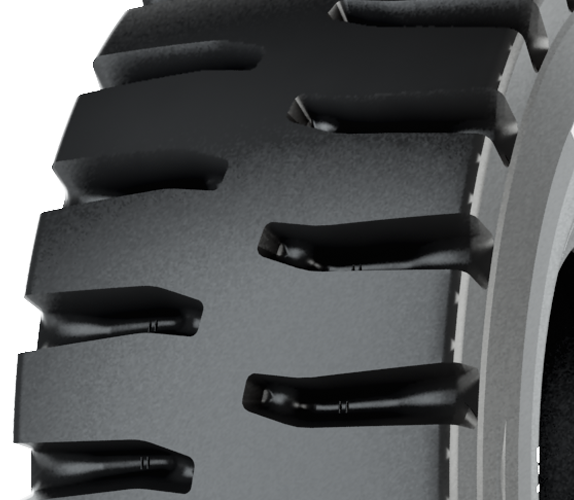

Extra deep L5 offset lug pattern combines excellent traction and high resistance to wear and cutting. Specifically designed to maximize service life in the harshest applications. Excellent traction in all off-road conditions. Deep undertread for improved puncture resistance. Reinforced bead, shoulder, and sidewall.Specialized mining compound for increased cut and impact resistance.
Engineered for:
Underground Mining \ Loaders
| SizeTire Size | RatingSpeed Rating | TypeTire Type | RimRim Width | O.D.Outside
Diameter |
S.W.Section Width | T.D.Tread Depth | Infl.P.Inflation Pressure | L.C.C. (lbs/kg) Load Carrying Capacity (lbs/kg) |
L.I.Load Index |
| in mm |
in mm |
32nds mm |
psi kPa |
5 mph 10 kph |
|||||
| 17.5R25 | ** | TL | 14.00/1.5 | 54.9 1394 |
17.5 444 |
83 66 |
94 650 |
18700 8500 |
182A2 |
| 20.5R25 | ** | TL | 17.00/2.0 | 60.9 1547 |
20.9 531 |
90 71 |
94 650 |
25400 11500 |
193A2 |
| 23.5R25 | ** | TL | 19.50/2.5 | 65.6 1666 |
23.8 604 |
98 78 |
94 650 |
32000 14500 |
201A2 |
| 26.5R25 | ** | TL | 22.00/3.0 | 70.9 1801 |
26.9 683 |
110 87 |
94 650 |
40800 18500 |
209A2 |
| 29.5R25 | ** | TL | 25.00/3.5 | 75.6 1920 |
30.6 777 |
118 94 |
94 650 |
49400 22400 |
216A2 |
| 29.5R29 | ** | TL | 25.00/3.5 | 79.1 2009 |
31.5 800 |
125 99 |
94 650 |
52000 23600 |
218A2 |
| 35/65R33 | ** | TL | 28.00/3.5 | 82.1 2085 |
36.0 914 |
120 95 |
94 650 |
61500 28000 |
224A2 |
L5
Deep undertread for improved puncture resistance. Reinforced bead, shoulder, and sidewall.
Specialized mining compound for increased cut and impact resistance.
Specifically designed to maximize service life in the harshest applications. Excellent traction in all
off-road conditions and specially suited for the harshest applications.
