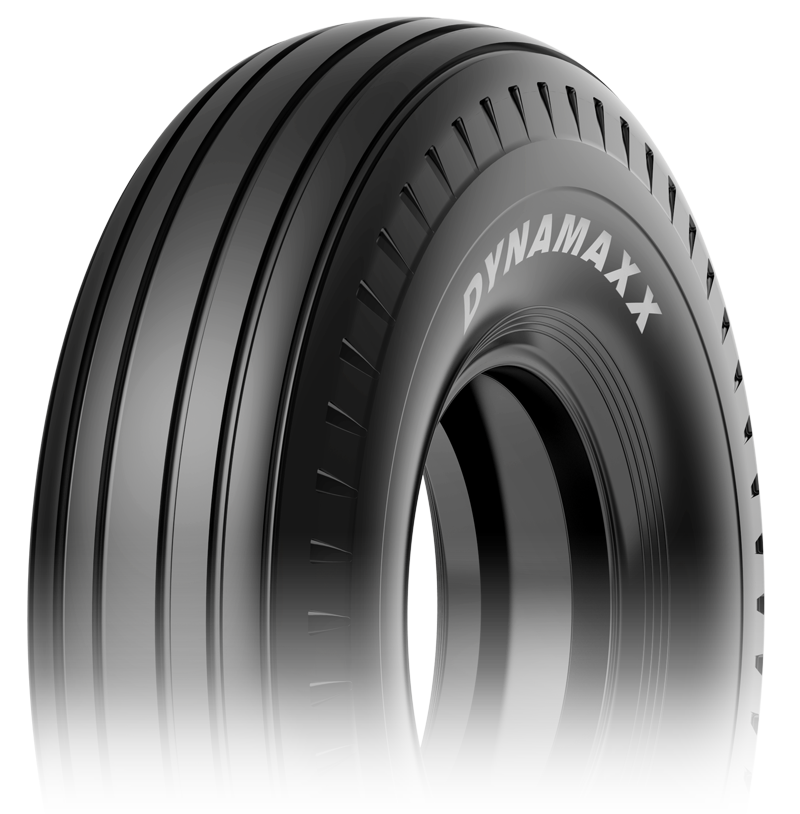

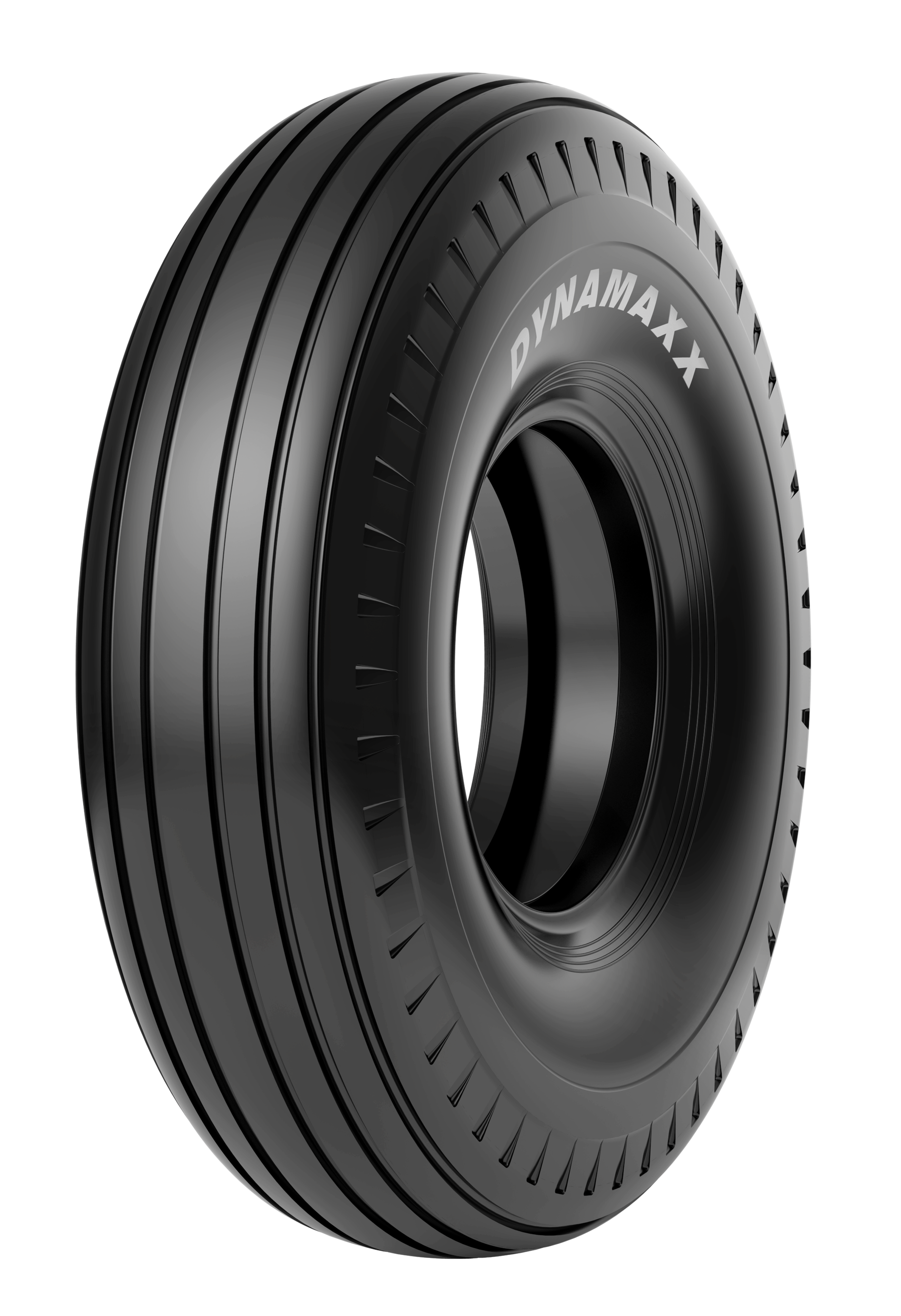

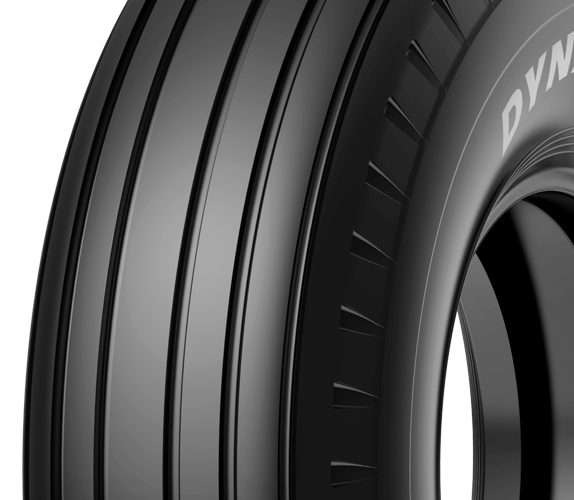

Pave Maxx+
Tire Description:
The Pave Maxx+ has been designed for optimum service in asphalt-spreader applications where low compression and long wear are necessary.Engineered for:
Compactor \ Paving
| SizeTire Size | PRPly Rating | TypeTire Type | RimRim Width | O.D.Outside
Diameter |
S.W.Section Width | T.D.Tread Depth | Infl.P.Inflation Pressure | L.C.C. (lbs/kg) Load Carrying Capacity (lbs/kg) |
L.I.Load Index |
| in mm |
in mm |
32nds mm |
psi kPa |
5 mph 10 kph |
|||||
| 14.00-20 | 12 | TT | 10.00W | 47.8 1214 |
14.6 371 |
15 12 |
58 400 |
12000 5450 |
167A2 |
| 14.00-20 | 14 | TT | 10.00W | 47.8 1214 |
14.9 371 |
15 12 |
69 475 |
13200 6000 |
170A2 |
| 18.00-25 | 16 | TL | 10.00/1.5 | 60.7 1542 |
18.1 460 |
20 16 |
58 400 |
22700 10300 |
189A2 |
| 18.00-25 | 20 | TL | 10.00/1.5 | 60.7 1542 |
18.1 460 |
20 16 |
69 475 |
25400 11500 |
193A2 |
| 21.00-25 | 28 | TL | 15.00/3.0 | 66.4 1686 |
22.2 564 |
22 17 |
75 575 |
36400 16500 |
205A2 |
PAVE
The Pave Maxx+ has been designed for optimum service in asphalt-spreader applications where low compression
and long wear are necessary.
